안녕하세요.
해당 글은 리눅스 서버에서 사용할 elastic stack 설치 과정입니다.
패키지 관리자를 사용하지 않고 설치합니다.
글의 순서
- 설치
- 설정
- 실행

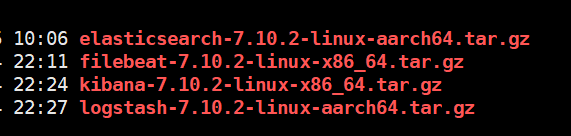

1. 설치
kibana
wget https://artifacts.elastic.co/downloads/kibana/kibana-7.10.2-linux-x86_64.tar.gz
tar xvf kibana-7.10.2-linux-x86_64.tar.gz
mv kibana-7.10.2-linux-aarch64 kibana
elasticsearch
wget https://artifacts.elastic.co/downloads/elasticsearch/elasticsearch-7.10.2-linux-aarch64.tar.gz
tar xvf elasticsearch-7.10.2-linux-aarch64.tar.gz
mv elasticsearch-7.10.2-linux-aarch64 elastic
logstash
wget https://artifacts.elastic.co/downloads/logstash/logstash-7.10.2-linux-aarch64.tar.gz
tar xvf logstash-7.10.2-linux-aarch64.tar.gz
mv logstash-7.10.2-linux-aarch64 logstash
filebeat
wget https://artifacts.elastic.co/downloads/beats/filebeat/filebeat-7.10.2-linux-x86_64.tar.gz
tar xvf filebeat-7.10.2-linux-x86_64.tar.gz
mv filebeat-7.10.2-linux-x86_64 filebeat
elastic directory
2. 설정
elasticsearch
vim elasticsearch/config/elasticsearch.yml
# elasticsearch.yml
cluster.name: log-cluster
node.name: es-log-1
# -- Paths --
path.data: /var/log/elastic-data/
path.logs: /var/log/elastic-logs/
# -- network --
network.host: "0.0.0.0"
http.port: 9200
# -- discovery --
discovery.seed_hosts: ["127.0.0.1", ["::1"]]
discovery.type: "single-node"
#cluster.initial_master_nodes: ["0.0.0.0"]
# -- x-pack disable --
xpack.security.enabled: false
xpack.ml.enabled: false
# -- system filters --
bootstrap.system_call_filter: false
별도의 작업
sudo vm.max_map_count=262144
https://www.elastic.co/guide/en/elasticsearch/reference/current/vm-max-map-count.html
kibana
vim kibana/config/kibana.yml
server.port: 5601
server.host: "0.0.0.0"
elasticsearch.hosts: ["http://127.0.0.1:9200"]
실행 과정의 에러
... bin/node : cannot execute binary file
https://github.com/elastic/kibana/issues/3978
https://discuss.elastic.co/t/error-in-the-installing/79911/2
logstash
vim logstash/config/logstash.yml
pipeline.ordered: auto
http.host: 127.0.0.1
http.port: 9600-9700
vim logstash/config/pipeline.yml
- pipeline.id: first-log
queue.type: persisted
config.config: "~/elastic/logstash/config/logstash.conf"
vim logstash/config/logstash.conf
input {
generator {}
}
filter {
sleep { time => 1 }
}
output {
stdout {
codec => dots }
}
}
filebeat
vim ./filebeat/filebeat.yml
filebeat.inputs:
- type: log
enabled: true
paths:
- /var/log/nginx/*.log
tags: ["nginx"]
※ logstash, filebeat의 조금 더 세부적인 설정은 관련 글을 확인해주세요!
2021/01/14 - [ELK/Logstash] - logstash input codec fluent - 예제
2021/01/22 - [ELK/Filebeat] - filebeat multiline 설정
3. 실행
elasticsearch
./elastic/bin/elasticsearch -d # 데몬으로 실행
pkill -f elasticsearch # 종료
kibana
kibana/bin/kibana & # background 실행
logstash
logstash/bin/logstash & # background 실행
filebeat
filebeat/filebeat -e --path.config filebeat
vm.max count, kibana에 설정하는 elastic hosts 등으로 시간이 다소 소요되었지만 모든 설정을 하나씩 해보는 것도 일부 도움이 되었던 것 같습니다.
bash 파일을 만든다면 이런 흐름이지 않을까 싶습니다.
#!/bin/bash
./elastic/bin/elastic -d
./kibana/bin/kibana &
./logstash/bin/logstash &
./filebeat/filebeat -e --path.config filebeat/ &
감사합니다!
